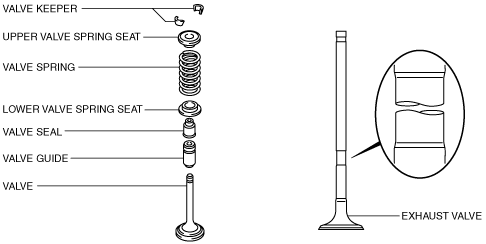

VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE CONSTRUCTION [MZR-CD 2.2]
id0110f2101100
• Heat-resistant steel valves.
• An equal pitch valve spring has been adopted.
• Part of the exhaust valve stem is narrow, functioning as a carbon cutter. Due to this, the valve guide has no carbon cutter and is common to the intake and exhaust.
