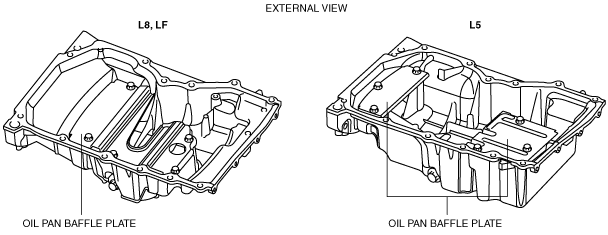

OIL PAN CONSTRUCTION [L8, LF, L5]
id0111c3100400
• An aluminum alloy oil pan has been adopted for noise reduction.
• An oil pan baffle plate has been adopted inside the oil pan to stabilize engine oil diffusion by crankshaft rotation and oil level when the vehicle rolls.
• A silicon sealant with excellent sealing qualities has been adopted.
