COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR-CD 2.2]

id0112f3801000

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

am6zzw00003726

1	Wiring harness
2	Hose
3	Coolant reserve tank (See Coolant Reserve Tank Removal Note.)

Coolant Reserve Tank Removal Note

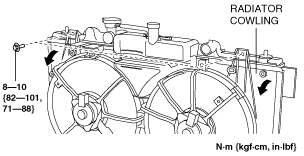

1.  Remove the radiator cowling fitting bolts and tilt the radiator cowling toward the engine.

am6zzw00004400

2.  Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.

am6zzw00003728
