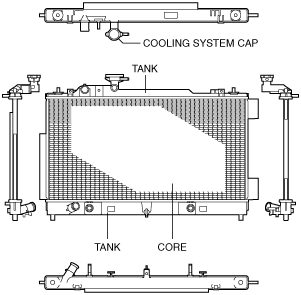

•  A corrugated fin type radiator has been adopted.

•  The radiator tanks are made of plastic and the core is made of aluminum for weight reduction.

•  The down-flow direction of water inside the radiator causes air to bleed from the cooling system easier.

•  Four mounting rubbers are utilized to decrease vibration.

•  The radiator has an ATF oil cooler in the lower radiator tank. (ATX)

•  A low-pressure type cap has been adopted for the cooling system. It is installed on the radiator filler neck.
