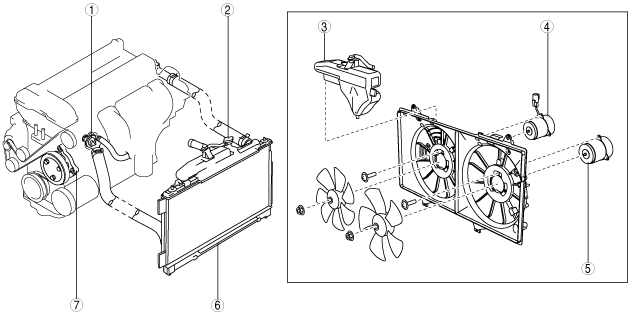

COOLING SYSTEM LOCATION INDEX [L8, LF, L5]

id0112g1800100

am6zzw00002320

1	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [L8, LF, L5].) (See THERMOSTAT INSPECTION [L8, LF, L5].)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [L8, LF, L5].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [L8, LF, L5].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L8, LF, L5].)
4	Cooling fan motor No.2 (See FAN MOTOR REMOVAL/INSTALLATION [L8, LF, L5].) (See FAN MOTOR INSPECTION [L8, LF, L5].)
5	Cooling fan motor No.1 (See FAN MOTOR REMOVAL/INSTALLATION [L8, LF, L5].) (See FAN MOTOR INSPECTION [L8, LF, L5].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [L8, LF, L5].) (See ENGINE COOLANT REPLACEMENT [L8, LF, L5].) (See ENGINE COOLANT LEAKAGE INSPECTION [L8, LF, L5].) (See RADIATOR REMOVAL/INSTALLATION [L8, LF, L5].)
7	Water pump (See WATER PUMP REMOVAL/INSTALLATION [L8, LF, L5].)
