AIR CLEANER CONSTRUCTION [L8, LF, L5]


id0113a0101400

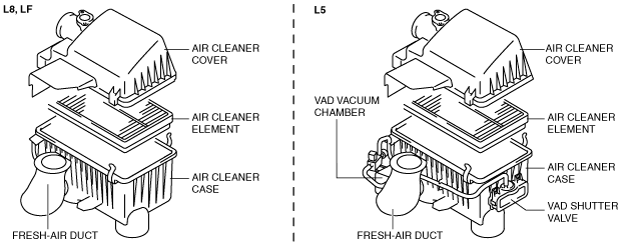

•  The air cleaner is composed of an air cleaner cover, air cleaner case, air cleaner element, fresh-air duct, variable air duct (VAD) shutter valve (L5), and VAD vacuum chamber (L5).
•  A dry type air cleaner element has been adopted.
am6zzn00000006
