VARIABLE AIR DUCT (VAD) CHECK VALVE (ONE-WAY) CONSTRUCTION/OPERATION [L5]

id0113a5149000

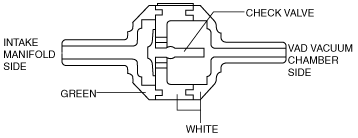

Construction

• The VAD check valve (one-way) is composed of a valve.

Operation

• The VAD check valve (one-way) allows air flow only from the VAD vacuum chamber to the intake manifold.

am6zzn00000023
