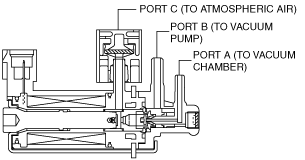

•  Consists of the solenoid coil, spring, and plunger.

•  The solenoid coil magnetizes, pulling the plunger. The passage between B and C ports opens due to the plunger being pulled, and vacuum is applied to the actuator.

•  The vacuum passage is blocked, and the passage between ports A and B opens, depressurizing the actuator.
