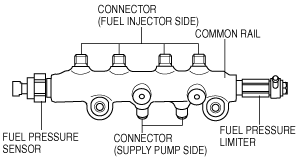

COMMON RAIL CONSTRUCTION [MZR-CD (RF Turbo)]


id0114f1146000

•  The PCM constantly maintains optimum pressure by monitoring the fuel pressure measurement signal from the fuel pressure sensor.
•  As a consideration to safety, a fuel pressure limiter has been installed to mechanically drain fuel if the pressure goes above 221 MPa {2,254 kgf/cm2, 32,050 psi}.
am6zzn00001146
