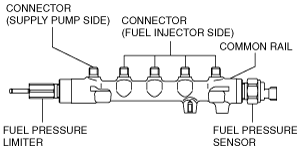

COMMON RAIL CONSTRUCTION [MZR-CD 2.2]
id0114f2146000
• The PCM constantly maintains optimum pressure by monitoring the fuel pressure measurement signal from the fuel pressure sensor.
• As a consideration to safety, a fuel pressure limiter has been installed to mechanically drain fuel if the pressure goes above 241 MPa {2,457 kgf/cm2, 34,954 psi}.
