POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM STRUCTURE [L8, LF, L5]

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM STRUCTURE [L8, LF, L5]

id0116a6101200

• Consists of a PCV valve and ventilation hose.

• The PCV valve is installed on the oil separator.

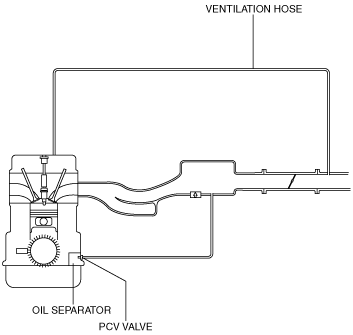

System diagram

am6zzn00000042
