ROLLOVER VALVE CONSTRUCTION/OPERATION [L8, LF, L5]


id0116a6103000

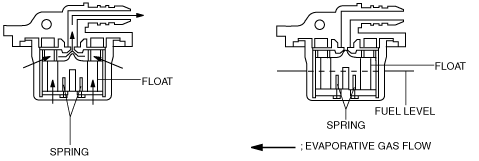

•  When the fuel flows into the rollover valve, the float (valve) closes the flow passage by relation of float weight, spring force and float floating force.
am6zzn00000047
