EMISSION SYSTEM LOCATION INDEX [L8, LF, L5]

id0116a6803700

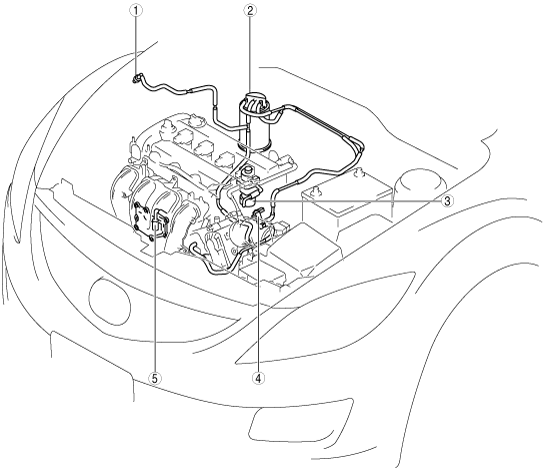

Engine Compartment Side

L.H.D.

am6zzw00002582

1	Evaporative gas check valve (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [L8, LF, L5].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L8, LF, L5].) (See CHARCOAL CANISTER INSPECTION [L8, LF, L5].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See EGR VALVE INSPECTION [L8, LF, L5].)
4	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See EXHAUST SYSTEM INSPECTION [L8, LF, L5].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [L8, LF, L5].)

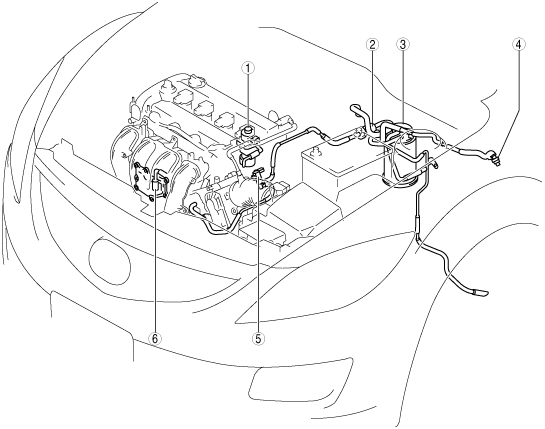

R.H.D.

am6zzw00002583

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See EGR VALVE INSPECTION [L8, LF, L5].)
2	Catch tank (See CATCH TANK REMOVAL/INSTALLATION [L8, LF, L5].) (See CATCH TANK INSPECTION [L8, LF, L5].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L8, LF, L5].) (See CHARCOAL CANISTER INSPECTION [L8, LF, L5].)
4	Evaporative gas check valve (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [L8, LF, L5].)
5	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See EXHAUST SYSTEM INSPECTION [L8, LF, L5].)
6	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [L8, LF, L5].)

Exhaust System

L8, LF

am6zzw00000233

1

TWC

L5

am6zzw00000234

1	WU-TWC
2	TWC

Fuel Tank Side

am6zzw00002584

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [L8, LF, L5].) (See ROLLOVER VALVE INSPECTION [L8, LF, L5].)
2	Fuel-filler cap
3	Check valve (two-way) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [L8, LF, L5].) (See CHECK VALVE (TWO-WAY) INSPECTION [L8, LF, L5].)
