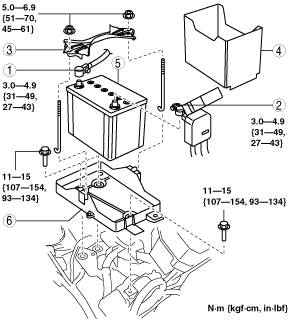

BATTERY REMOVAL/INSTALLATION [L8, LF, L5]
id0117a5800500
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am6zzw00002360
|
|
1
|
Negative battery cable
|
|
2
|
Positive battery cable
|
|
3
|
Battery clamp
|
|
4
|
Battery box
|
|
5
|
Battery
|
|
6
|
Battery tray
|
Battery Box Installation Note
1. Install the battery box so that the side with the larger notch faces toward the front fender (LH).
am6zzw00002361
|
