BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]

id0117f1800500

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

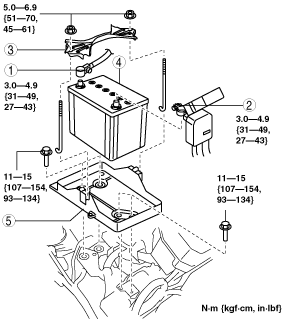

am6zzw00003741

1	Negative battery cable
2	Positive battery cable
3	Battery clamp
4	Battery
5	Battery tray
