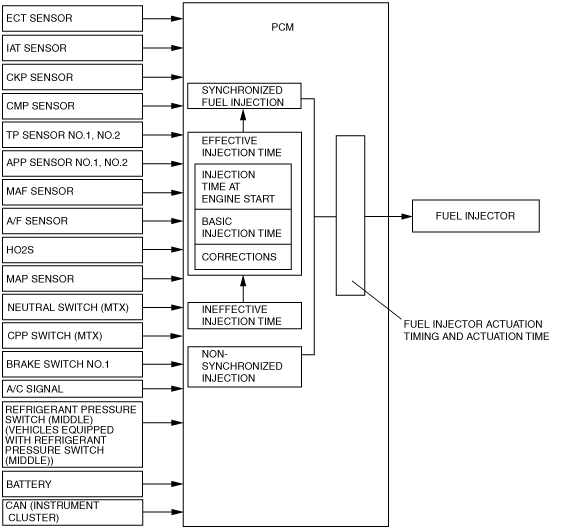

FUEL INJECTION CONTROL BLOCK DIAGRAM [L8, LF, L5]
id014046101800
• The PCM determines the engine operation conditions based on the input signals from each sensor, drives the injectors at the optimum fuel injection time (fuel injection amount) and fuel injection timing to inject fuel.
