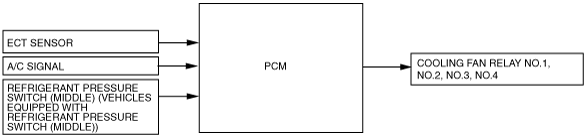

ELECTRICAL FAN CONTROL BLOCK DIAGRAM [L8, LF, L5]


id014046103900

•  The PCM determines the engine operation conditions based on input signals from the sensors and controls the cooling fan relay No.1, No.2, No.3, No.4
