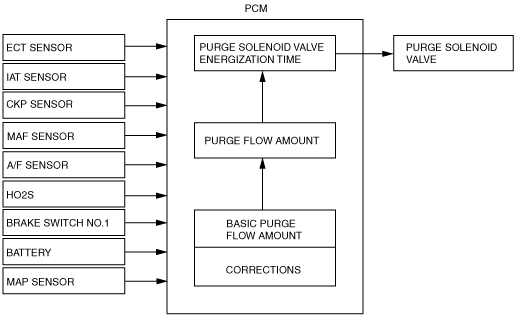

PURGE CONTROL BLOCK DIAGRAM [L8, LF, L5]


id014046175500

•  The PCM determines the engine operation conditions based on input signals and sends an operation signal to the purge solenoid valve.
