NEUTRAL SWITCH INSPECTION [L8, LF, L5]

id014046800800


Continuity Inspection

1.  Disconnect the negative battery cable.

2.  Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G35M-R].)(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R].)(See NEUTRAL SWITCH REMOVAL/INSTALLATION [A26M-R].)

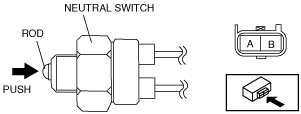

3.  Inspect for continuity between the neutral switch terminals using an ohmmeter.

am6zzw00000806

•  If not as specified, replace the neutral switch.
(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G35M-R].)
(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R].)
(See NEUTRAL SWITCH REMOVAL/INSTALLATION [A26M-R].)

Specification

Measured condition

Transmission

Continuity
Rod pushed
In neutral
Continuity detected
Except above
Other
No continuity
