MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [L8, LF, L5]

id014046804300

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)

3.  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L8, LF, L5].)

4.  Disconnect the MAP sensor connector.

5.  Remove the MAP sensor.

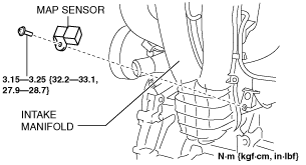

L8

am6zzw00002682

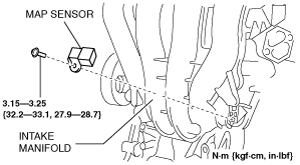

LF, L5

am5ezw00001555

6.  Install in the reverse order of removal.
