AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L8, LF, L5]

id014046899900

L8, LF

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Disconnect the negative battery cable.

2.  Disconnect the A/F sensor connector.

3.  Disconnect the HO2S connector.

4.  Remove the floor under cover.

5.  Remove in the order indicated in the table.

am6zzw00000836

1	Wiring harness bracket (See Wiring Harness Bracket Installation Note.)
2	A/F sensor
3	HO2S

Wiring Harness Bracket Installation Note

Note

•  There might be no pin. If there is no pin, lock the wiring harness bracket against rotation and tighten the nut.

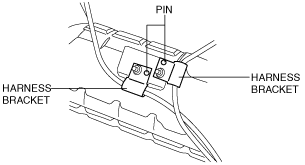

am6zzw00000837

L5

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)

3.  Disconnect the A/F sensor connector.

4.  Disconnect the HO2S connector.

5.  Remove in the order indicated in the table.

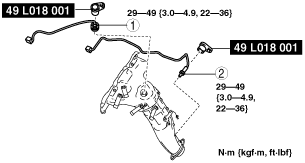

am6zzw00000838

1	A/F sensor
2	HO2S
