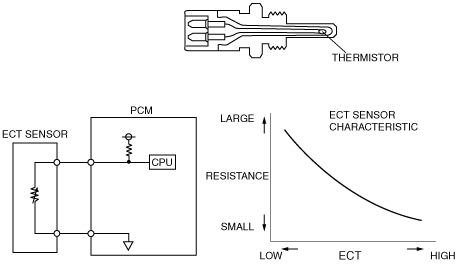

•  Installed to the side of the cylinder block.

•  The thermistor type ECT sensor changes resistance according to the ECT.

•  The resistance decreases if the ECT increases and, conversely, increases if the ECT decreases.
