INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]
id0140f1173600
• Installed to the air cleaner.
• Built into the mass airflow sensor.

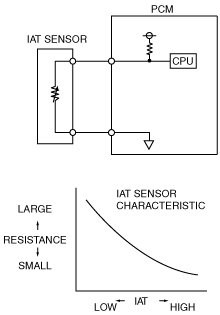

• The thermistor type IAT sensor changes resistance according to the IAT.
• The resistance decreases if the IAT increases and, conversely, increases if the IAT decreases.
