INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]
id0140f1181600
• Installed on the charge air cooler.

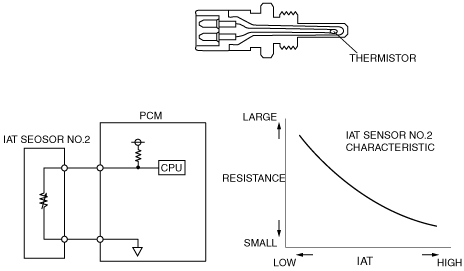

• The thermistor type IAT sensor No.2 changes resistance changes according to the IAT.
• The resistance decreases if the IAT increases and, conversely, increases if the IAT decreases.
