EXHAUST GAS TEMPERATURE SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]


id0140f1223400

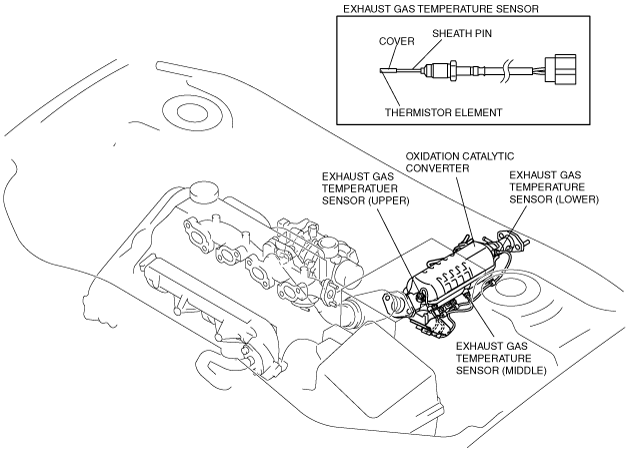

•  Installed to the 3 locations on the oxidation catalytic converter.
•  A thermistor element is used with the resistance varying according to the exhaust gas temperature.
am6zzn00001049
•  The resistance decreases if the exhaust gas temperature increases and conversely increases if the exhaust gas temperature decreases.
am6zzn00001050
