BOOST SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]


id0140f1740300

•  Installed on the intake manifold with the bracket.
am6zzn00001014

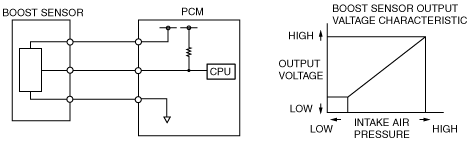

•  When pressure is applied to the piezoelectric element in the sensor, an electric potential difference occurs. Output voltage increases as the intake air pressure increases.
am6zzn00001015
