AIR FUEL RATIO (A/F) SENSOR CONSTRUCTION/OPERATION [MZR-CD 2.2]


id0140f2256100

•  Installed to the rear of the oxidation catalytic converter.
am6zzn00001361
•  The wide-range air/fuel ratio sensor is a pump cell type sensor, using both oxygen concentration cell action and oxygen pump cell action, and can detect the oxygen concentration (air/fuel ratio of the air-fuel mixture) in the exhaust gas in all ranges, from lean to rich.
•  A heater is built into the sensor to facilitate the activation of the A/F sensor at engine startup (when the exhaust gas temperature is low).

Operation

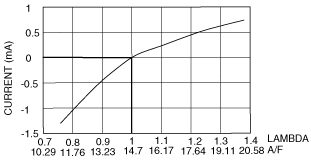

•  The wide-range air/fuel ratio sensor converts the oxygen concentration in the exhaust gas into a current value, and sends the value to the PCM.
•  The PCM calculates the λ (lambda) value of the air-fuel mixture based on the received current value.
•  (λ (lambda)) = (actual air/fuel ratio)/14.7
