GUIDE BLADE ACTUATOR POSITION SENSOR CONSTRUCTION/OPERATION [MZR-CD 2.2]
id0140f2877000

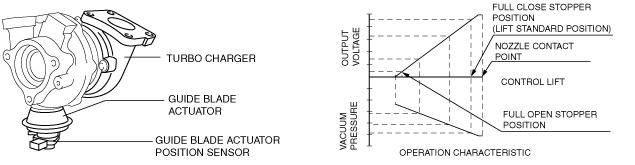

• A potentiometer type has been adopted.
• Detects the fluctuation in voltage (variable resistance) of the guide blade opening angle and inputs it to the PCM. The voltage input to the PCM increases proportionately to the increase in guide blade opening angle.
