SYSTEM WIRING DIAGRAM

id020300801100

With advanced keyless entry and push button start system

am6zzw00002696

Without advanced keyless entry and push button start system

Note

•  There are two types keyless receivers. Before performing malfunction diagnosis, verify whether the type of keyless receiver connector is type A or B.

―  Type A: Keyless receiver connector (4-pin)

―  Type B: Keyless receiver connector (6-pin)

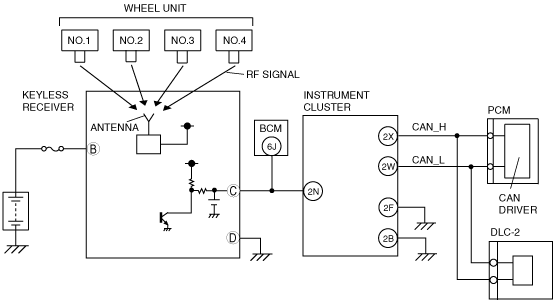

Type A

am6zzw00002825

Type B

am6zzn00001636
