TIRE PRESSURE MONITORING SYSTEM (TPMS) WIRING DIAGRAM

id021200100600

With Advanced Keyless Entry And Push Button Start System

am6zzw00002696

Without Advanced Keyless Entry And Push Button Start System

Note

•  There are two types keyless receivers. Before performing malfunction diagnosis, verify whether the type of keyless receiver connector is type A or B.

―  Type A: Keyless receiver connector (4-pin)

―  Type B: Keyless receiver connector (6-pin)

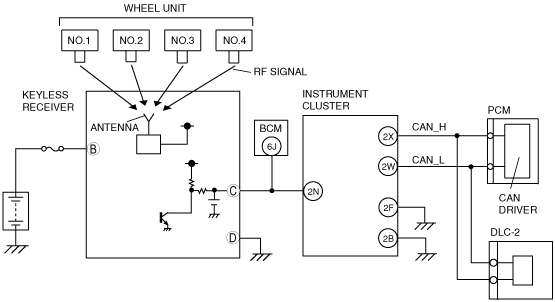

Type A

am6zzw00002697

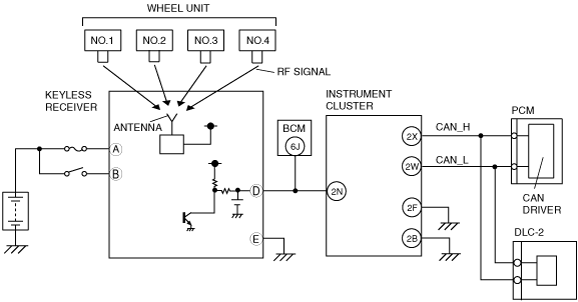

Type B

am6zzn00001636
