SYMPTOM TROUBLESHOOTING [DYNAMIC STABILITY CONTROL (DSC)]

id0403b2804200

• Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom

1

Any of the following lights do not illuminate with switch the ignition to on.

•  ABS warning light

•  BRAKE system warning light

•  DSC indicator light

•  TCS OFF light

2

Any of the following lights stay on:

•  ABS warning light.

•  BRAKE system warning light

•  DSC indicator light

•  TCS OFF light

3

There is a malfunction in the system even though ABS warning light, BRAKE system warning light, DSC indicator light and TCS OFF light do not illuminate.

4

ABS or TCS^*1 operates frequently.

TCS does not work correctly.

5

DSC^*2 operates frequently.

DSC does not work correctly.

6

DSC indicator light flashes (when neither the TCS nor the DSC are operating).

No.	Symptom
1	Any of the following lights do not illuminate with switch the ignition to on. • ABS warning light • BRAKE system warning light • DSC indicator light • TCS OFF light
2	Any of the following lights stay on: • ABS warning light. • BRAKE system warning light • DSC indicator light • TCS OFF light
3	There is a malfunction in the system even though ABS warning light, BRAKE system warning light, DSC indicator light and TCS OFF light do not illuminate.
4	ABS or TCS^*1 operates frequently.
TCS does not work correctly.
5	DSC^*2 operates frequently.
DSC does not work correctly.
6	DSC indicator light flashes (when neither the TCS nor the DSC are operating).

*1 : DSC system contains traction control function, DSC indicator light goes on and off while DSC operates.

*2 : DSC indicator light goes on and off while DSC operates.

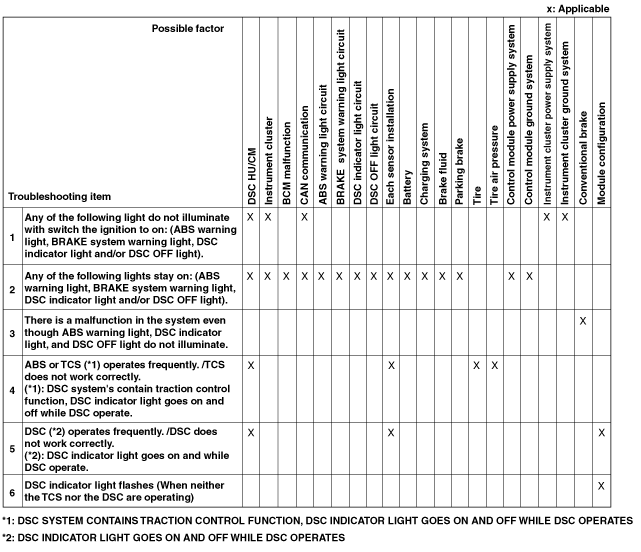

am6zzw00000078
