CALIPER (REAR) DISASSEMBLY/ASSEMBLY

id041100800600

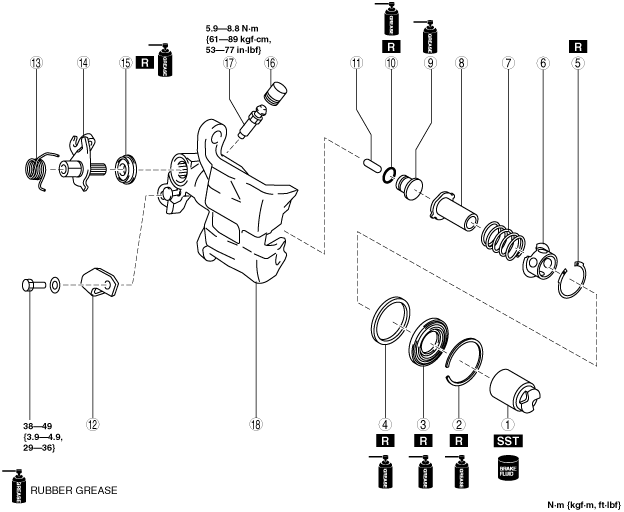

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

am6zzw00002885

1	Piston (See Piston Disassembly Note) (See Piston Boot, Ring Boot, Piston Assembly Note)
2	Ring Boot (See Piston Boot, Ring Boot, Piston Assembly Note)
3	Piston boot (See Piston Boot, Ring Boot, Piston Assembly Note)
4	Piston seal
5	Snap ring
6	Cover
7	Spring
8	Adjuster
9	Connector
10	O-ring
11	Connecting link
12	Bracket
13	Spring
14	Operating lever
15	Lever boot
16	Bleeder cap
17	Breeder screw
18	Caliper body

Piston Disassembly Note

1.  Rotate the piston counterclockwise using the SST and remove it from the caliper body.

aatjjw00002057

Piston Boot, Ring Boot, Piston Assembly Note

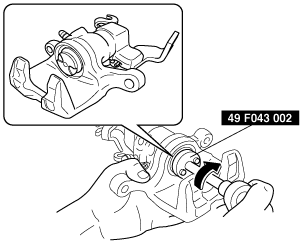

1.  Rotate the piston clockwise slowly using the SST and press the piston into the caliper body completely.

aatjjw00002058

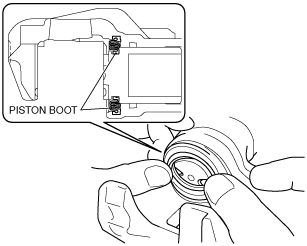

2.  Assemble the boot part of the piston boot to the caliper body groove.

am6zzw00003681

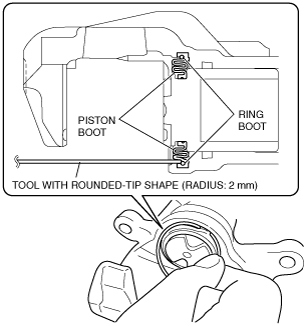

3.  Assemble the ring boot to the piston boot at the position shown in the figure, and perform the following procedure.

am6zzw00003682

(1)  Using a tool with a rounded-tip shape (radius: 2 mm), press in all of the boot part of the piston boot into the caliper body groove.

Caution

•  Using a sharp-tipped tool could result in damage to the piston boot. Always use a rounded-tip tool to perform the work.

(2)  Verify that the piston boot is securely assembled to the caliper body.
