VACUUM HOSE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]


id0411008016e1

1.  Pinch open the clip using pliers and disconnect the vacuum hose from the power brake unit. (L.H.D.)

2.  Pinch open the clip using pliers and disconnect the vacuum hose. (R.H.D.)

am6zzw00003366

3.  Remove vacuum hose from the clip.

am6zzw00003133

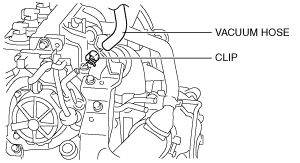

4.  Pinch open the clip using pliers and disconnect the vacuum hose from the vacuum pump.

am6zzw00003134

5.  Remove the vacuum hose.

6.  Install in the reverse order of removal.
