FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041300199700

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, verify that there is no twisting in the ABS wheel-speed sensor.

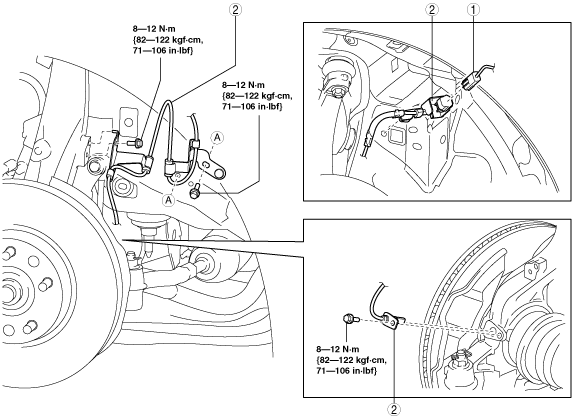

am6zzw00001884

1	Connector (See Connector Removal Note.)
2	Front ABS wheel-speed sensor

Connector Removal Note

1.  Pull aside the mudguard and disconnect the connector.
