DSC INDICATOR LIGHT OPERATION


id041500102300

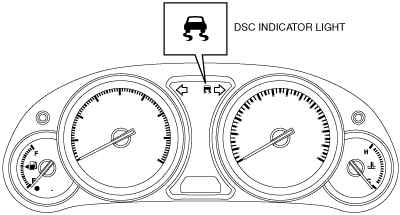

•  When the DSC and CAN lines are normal, the DSC indicator light illuminates for approx. 3 s when the ignition is switched to ON to check the light function. When the system is malfunctioning, the DSC indicator light remains illuminated.
•  When the DSC or TCS is operating (DSC has not been disabled by pressing the DSC OFF switch), the DSC indicator light operates as follows:

DSC Indicator Light Operation

Item
DSC indicator light
TCS, DSC not operating
Not illuminated
TCS operating
Flashes (0.5 s intervals)
DSC operating
TCS, DSC system malfunction
Illuminated
DSC HU/CM configuration procedure is not completed
Flashes (1 s intervals)

am6zzn00000178
