CLUTCH RELEASE CYLINDER CONSTRUCTION
id051000210600
-
Note
-
• Except for the bleeder cap and bleeder screw, the clutch release cylinder cannot be disassembled. Therefore, if there is any malfunction in the interior of the clutch releaser cylinder, replace the cylinder component without disassembling. (MZR-CD 2.2)

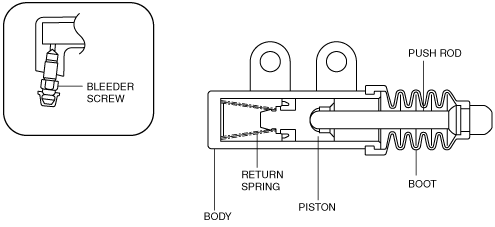

• The clutch release cylinder consists of a return spring, piston, push rod and a bleeder screw for bleeding air.
• Due to spring pressure maintaining play between the push rod end and the release fork at zero, an automatic adjusting, maintenance-free design has been achieved.
G35M-R, G66M-R
A26M-R (MZR-CD (RF Turbo))
