CLUTCH MASTER CYLINDER CONSTRUCTION
id051000210700
-
Note
-
• The clutch master cylinder cannot be disassembled. Therefore, if there is any malfunction in the interior of the clutch master cylinder, replace the cylinder component without disassembling. (MZR-CD 2.2)

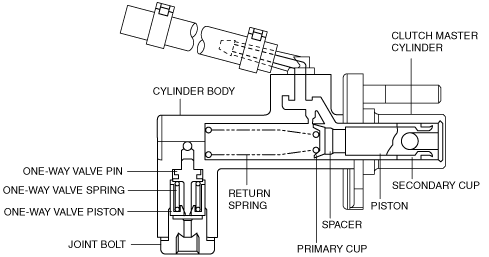

• The clutch master cylinder consists of a primary cup, secondary cup, spacer, piston, return spring, and a cylinder body.
• A clutch master cylinder with a built-in one-way valve has been adopted preventing sudden clutch engagement and ensuring smooth start ability.
