CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [MZR-CD 2.2]

id0510008013e8

Caution

•  Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.

Note

•  If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

1.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

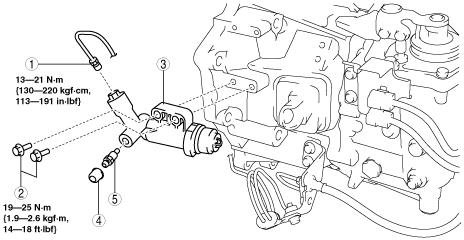

A26M-R (MZR-CD 2.2)

am6zzw00004134

1	Clutch pipe
2	Bolt
3	Clutch release cylinder
4	Bleeder cap
5	Bleeder screw
