CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [MZR-CD 2.2]

id0510008014e8

Caution

•  Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.

Note

•  If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

1.  Remove the battery and battery tray. (L.H.D.)

2.  Remove the insulator. (if equipped) (R.H.D.)

am6zzw00001874

3.  Remove in the order indicated in the table.

4.  Plug the clutch pipe after removing it to avoid leakage.

5.  Install in the reverse order of removal.

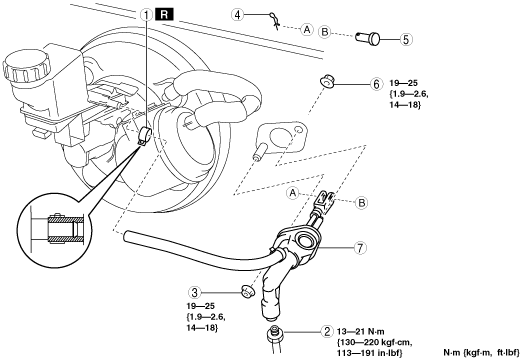

L.H.D.

am6zzw00004337

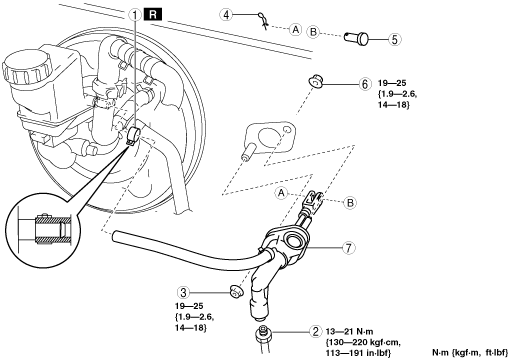

R.H.D.

am6zzw00004338

1	Clip
2	Clutch pipe
3	Nut
4	Clip
5	Pin
6	Nut
7	Clutch master cylinder
