CLUTCH PEDAL INSPECTION/ADJUSTMENT [L8, LF, L5, MZR-CD (RF Turbo)]

id0510008021e5

Clutch Pedal Height

1. Measure the distance from the upper surface of the pedal pad.

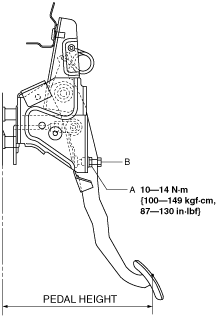

L.H.D.

am6zzw00000518

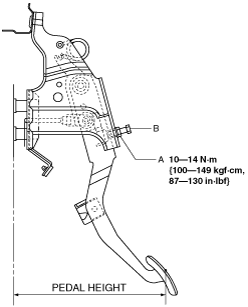

R.H.D.

am6zzw00000519

• If not as specified, adjust the pedal height by turning adjustment bolt B and locknut A.

Clutch pedal height (Reference Value)

L.H.D.: 233 mm {9.17 in}

R.H.D.: 232 mm {9.13 in}

Clutch Pedal Free Play

1. Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.

L.H.D.

am6zzw00000520

R.H.D.

am6zzw00000521

• If not as specified, adjust the pedal free play by loosening locknut C and turning push rod D as necessary.

Clutch pedal free play

5—15 mm {0.2—0.5 in}

Clutch pedal push rod free play (Reference value)

0.1—0.5 mm {0.004—0.020 in}

Clutch Pedal Disengagement Point

1. Apply the parking brake and fix the front and rear of the wheels with the wheel chocks.

2. Start the engine at idle.

3. Without depressing the clutch pedal, move the shift lever slowly to the reverse position.

4. Hold the lever when the gear noise is heard.

5. Depress the clutch pedal slowly.

6. Hold the pedal when the gear noise stops (clutch pedal disengagement point).

7. Measure distance A (the distance from the clutch pedal disengagement point to the fully depressed position) and the pedal stroke.

8. Verify that they are within specification.

am6uuw00001279

• If distance A or the pedal stroke is out of specification, adjust the pedal height or the clutch pedal free play to specification.

Clutch pedal disengagement stroke (Reference value)

Minimum: 20 mm {0.79 in}

Clutch pedal stroke (Reference value)

L.H.D.: 135.6 mm {5.339 in}

R.H.D.: 140 mm {5.51 in}
