CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY

id051000802300

Note

•  The clutch master cylinder cannot be disassembled. Therefore, if there is any malfunction in the interior of the clutch master cylinder, replace the cylinder component without disassembling. (MZR-CD 2.2)

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

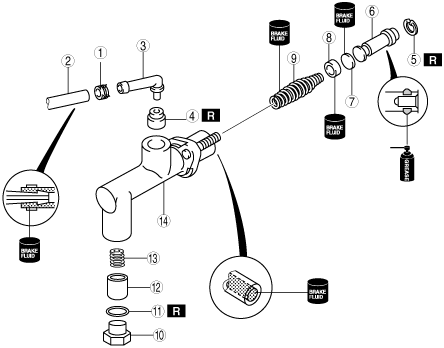

am6zzw00000523

1	Clip
2	Hose
3	Joint
4	Bushing
5	Snap ring (See Snap Ring Disassembly/Assembly Note.)
6	Piston and secondary cap component
7	Spacer
8	Primary cap
9	Return spring
10	Joint bolt
11	Gasket
12	One-way valve piston
13	One-way valve spring
14	Clutch master cylinder body

Snap Ring Disassembly/Assembly Note

1.  Hold the piston down using a cloth‐wrapped pin punch.

am6uuw00001282

•  If disassembling, remove the snap ring; if assembling, install it.
