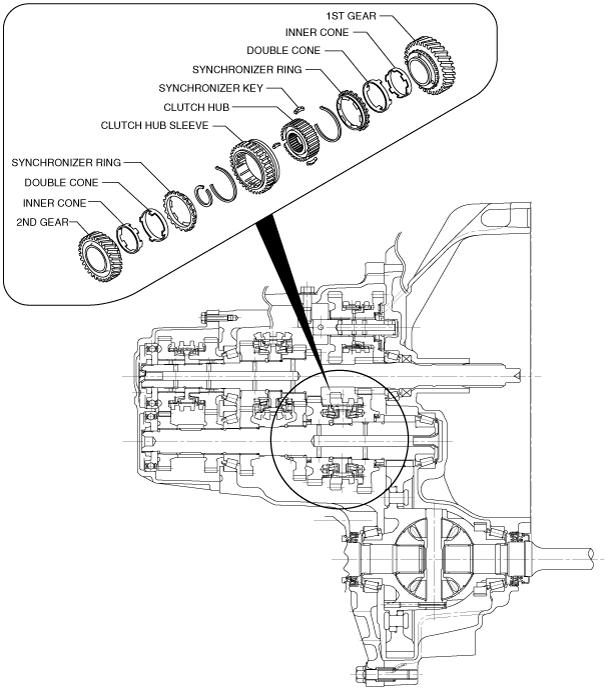

•  A triple cone synchronizer mechanism is used for the 1st and 2nd gears.

•  The triple cone synchronizer mechanism is a compact device capable of heavy duty meshing.

•  The synchronizer mechanism reduces meshing time and improves operation.

•  The triple cone synchro mechanism includes a synchronizer ring, double cone, and an inner cone.

•  The inner part of the inner cone is used as a friction surface.
