FORWARD CLUTCH, 3-4 CLUTCH HYDRAULIC CIRCUIT OUTLINE [FS5A-EL]
id051721110000

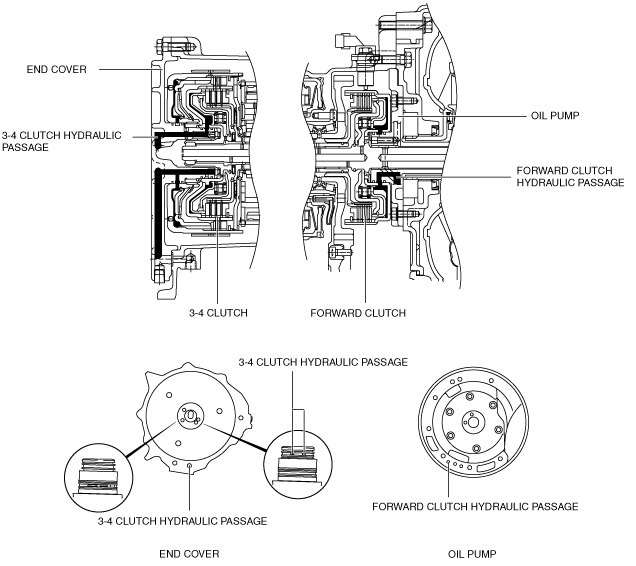

• By designing exclusive passages for the forward clutch and the 3-4 clutch in the transaxle case, via the oil pump and end cover the hydraulic pressure passages are shortened and control during clutch engagement is improved.
am6zzn00000830
