OUTPUT GEAR OUTLINE [FS5A-EL]


id051721111200

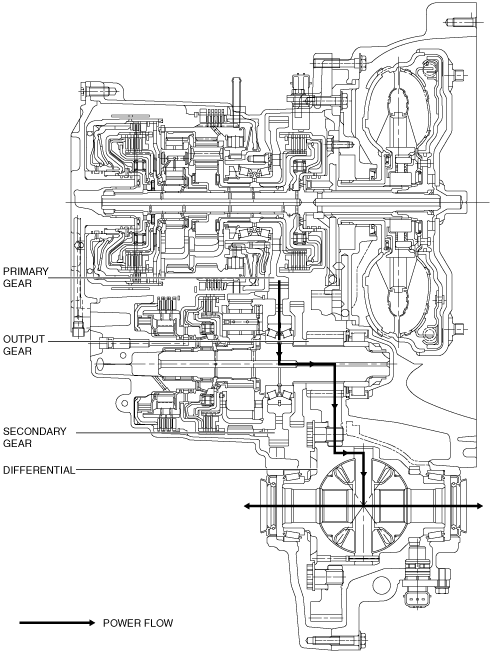

•  The two-step final drive mechanism has been adopted by arranging the secondary gear and the output gear on the output gear shaft to miniaturize the transaxle.
am6zzn00000844
