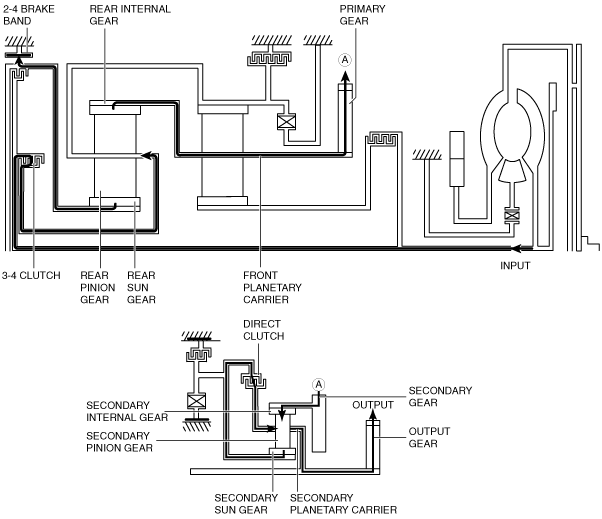

POWER FLOW OPERATION [FS5A-EL]

id051721111300

Component description

Component

Function

Forward clutch

•  Transmits the input torque from the turbine shaft to the front sun gear.

•  Operates in the forward range of the first, second, or third gear position.

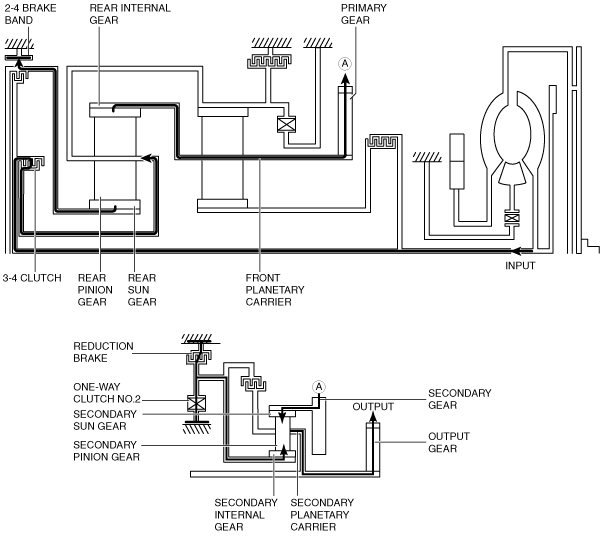

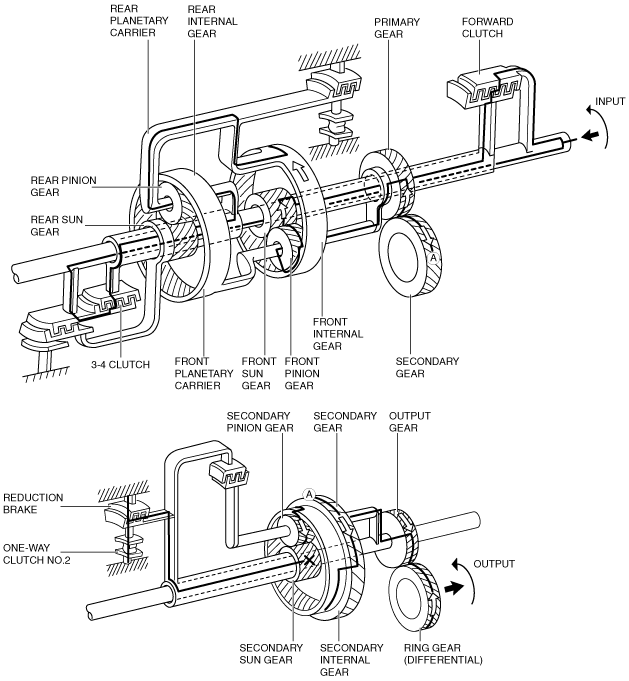

3-4 clutch

•  Transmits the input torque from the turbine shaft to the rear planetary carrier.

•  Operates in the forward range of the third, fourth or fifth gear position.

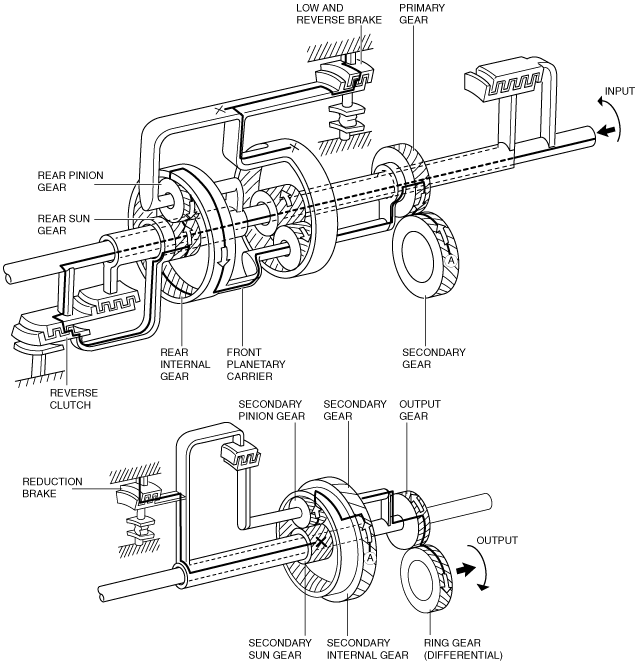

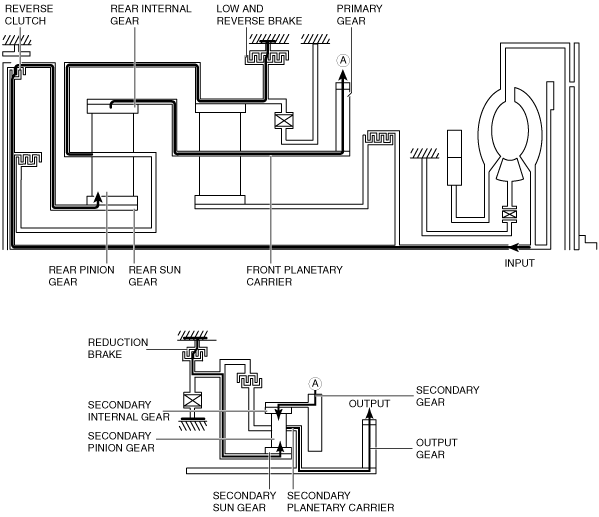

Reverse clutch

•  Transmits the input torque from the turbine shaft to the rear sun gear.

•  Operates when the vehicle is backing up.

Direct clutch

•  Engage the secondary planetary carrier and the secondary sun gear.

•  Operates in the fifth gear position.

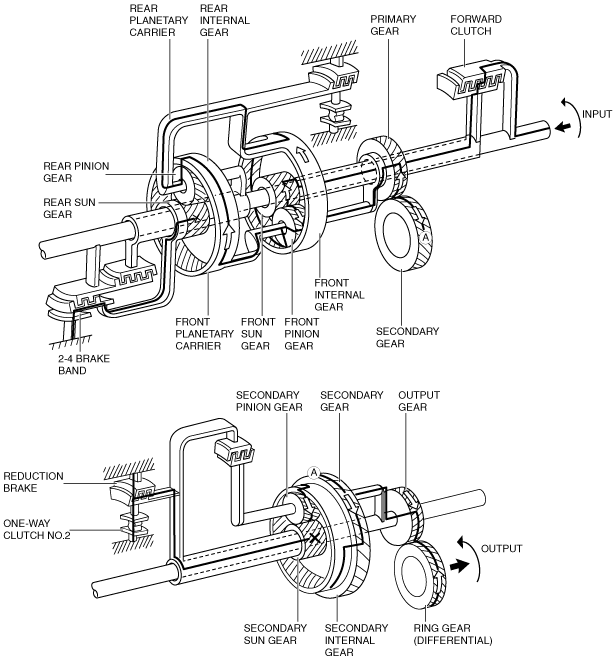

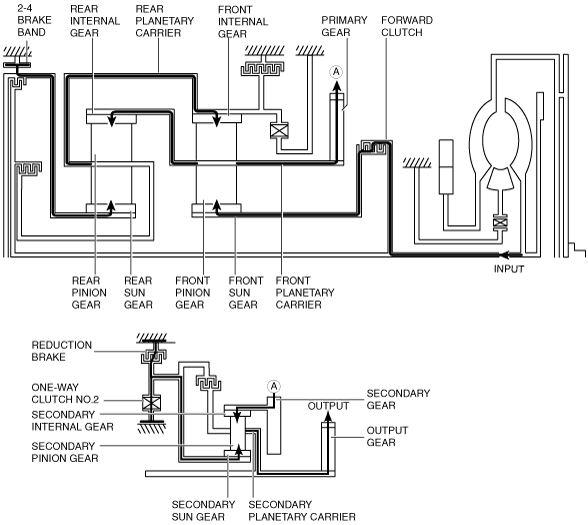

2-4 brake band

•  Locks rotation of the reverse drum and fixes the rear sun gear.

•  Operates in the second or fourth gear position.

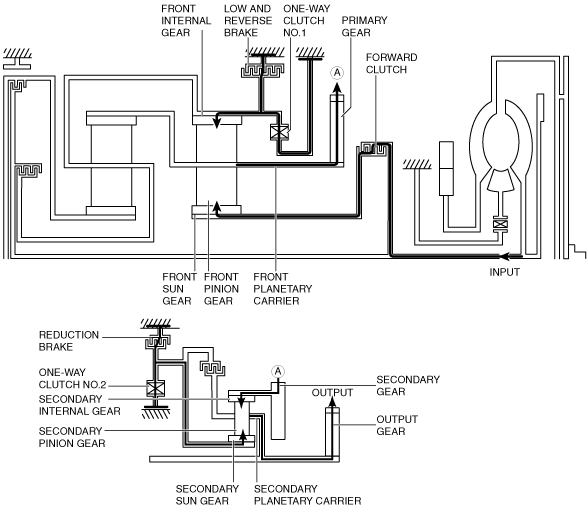

Low and reverse brake

•  Fixes the rotation of the front internal gear.

•  Operates when the vehicle is backing up or in the first gear position (M range 1GR).

Reduction brake

•  Fixes the rotation of the secondary sun gear.

•  Operates when the vehicle is backing up.

•  Operates in the first, second, third or fourth gear position.

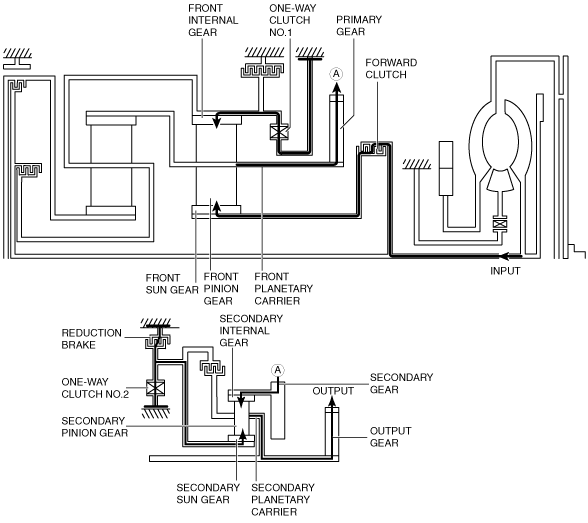

One-way clutch No.1

•  Locks the counterclockwise rotation of the front internal gear in the first gear position.

One-way clutch No.2

•  Operates in the first, second, third or fourth gear position.

Front planetary gear

•  The front planetary gear and rear planetary gear functions as a transmission due to the engagement/disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the primary gear.

Rear planetary gear

Secondary planetary gear

•  The secondary planetary gear functions as a transmission due to the engagement/disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.

Component	Function
Forward clutch	• Transmits the input torque from the turbine shaft to the front sun gear. • Operates in the forward range of the first, second, or third gear position.
3-4 clutch	• Transmits the input torque from the turbine shaft to the rear planetary carrier. • Operates in the forward range of the third, fourth or fifth gear position.
Reverse clutch	• Transmits the input torque from the turbine shaft to the rear sun gear. • Operates when the vehicle is backing up.
Direct clutch	• Engage the secondary planetary carrier and the secondary sun gear. • Operates in the fifth gear position.
2-4 brake band	• Locks rotation of the reverse drum and fixes the rear sun gear. • Operates in the second or fourth gear position.
Low and reverse brake	• Fixes the rotation of the front internal gear. • Operates when the vehicle is backing up or in the first gear position (M range 1GR).
Reduction brake	• Fixes the rotation of the secondary sun gear. • Operates when the vehicle is backing up. • Operates in the first, second, third or fourth gear position.
One-way clutch No.1	• Locks the counterclockwise rotation of the front internal gear in the first gear position.
One-way clutch No.2	• Operates in the first, second, third or fourth gear position.
Front planetary gear	• The front planetary gear and rear planetary gear functions as a transmission due to the engagement/disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the primary gear.
Rear planetary gear
Secondary planetary gear	• The secondary planetary gear functions as a transmission due to the engagement/disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.
