POWER FLOW STRUCTURE [FS5A-EL]


id051721111500

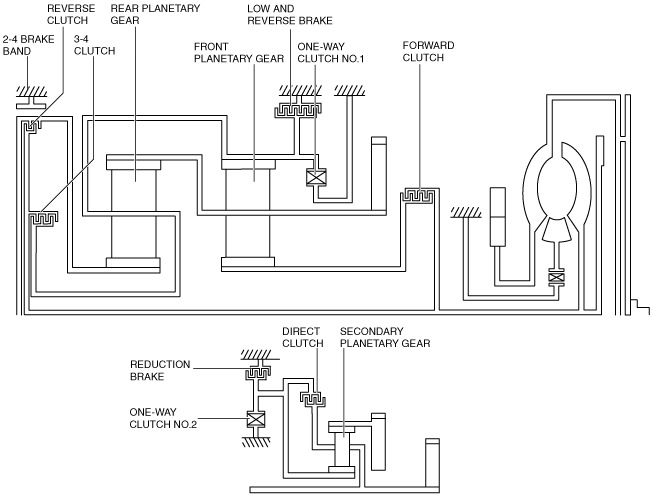

•  The powertrain mechanism of the FS5A-EL type consists of four pairs of clutches, two pairs of brakes, band brake, two pairs of one-way clutches, and three pairs of single type planetary gears.
am6zzn00000808
am6zzn00000809
