TCM REMOVAL/INSTALLATION [FS5A-EL]
id051721800400

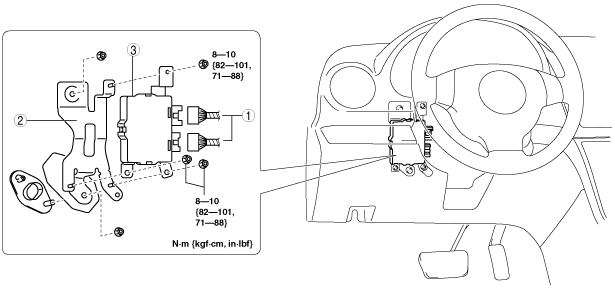

European (L.H.D.) specs.
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
am6zzw00002813
|
|
1
|
TCM connector
|
|
2
|
Bracket
|
|
3
|
TCM
|
3. Install in the reverse order of removal.

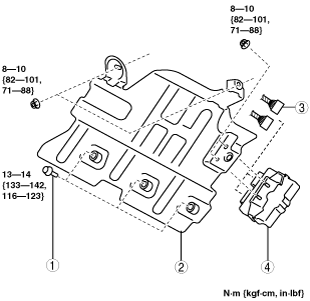

U.K. specs.
1. Disconnect the negative battery cable.
2. Remove the front scuff plate (left-side).
3. Remove the front side trim (left-side).
4. Partially peel back the flower covering.
5. Remove in the order indicated in the table.
am6zzw00001509
|
|
1
|
Set bolts
(SeeSet Bolt Removal Note.)
|
|
2
|
PCM cover
|
|
3
|
TCM connector
|
|
4
|
TCM
|
6. Install in the reverse order of removal.
Australian, General (R.H.D.) specs.
1. Disconnect the negative battery cable.
2. Remove the front scuff plate (left-side).
3. Remove the front side trim (left-side).
4. Partially peel back the flower covering.
5. Remove in the order indicated in the table.
am6zzw00003287
|
|
1
|
PCM cover
|
|
2
|
TCM connector
|
|
3
|
TCM
|
6. Install in the reverse order of removal.
Set Bolt Removal Note
1. Using a chisel and a hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.
2. Loose the set nut/bolt using an impact screwdriver or pliers.
am6zzw00001169
|
Set Bolt Installation Note
1. Install a new set nut/bolt and tighten it until the neck of the nut/bolt is cut.
am6zzw00001170
|
