SELECTOR LEVER STRUCTURE

id051800100400

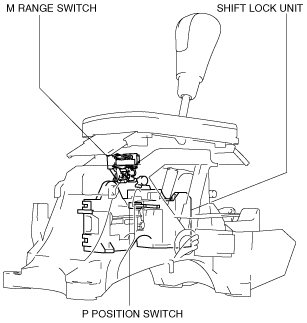

•  Mainly consists of the M range switch, P position switch, and shift lock unit.

am6zzn00000953

P Position Switch

P position switch outline

•  The P position switch detects whether the selector lever is in the P position or not.

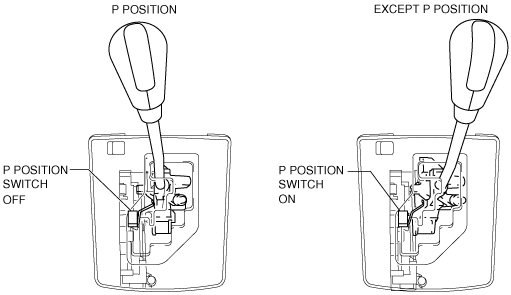

P position switch construction/operation

•  The P position switch is an on/off-type which is on when the selector lever is not in the P position.

am6zzn00000951

M Range Switch

M range switch outline

•  The M range switch detects the selector lever is in the M range position or not.

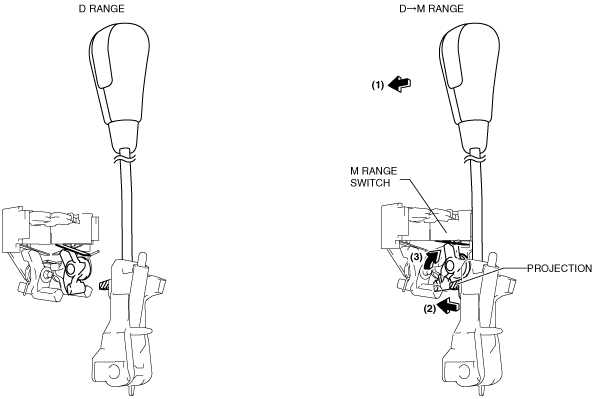

M range switch operation

•  The M range switch is an on/off type switch which is on when the selector lever is shifted to the M range position. It also remains on during up-shift and down-shift operations.

am6zzn00000952

Up Switch

Up switch outline

•  The up switch detects an up-shift operation in the M range and sends an up-shift request signal to the TCM.

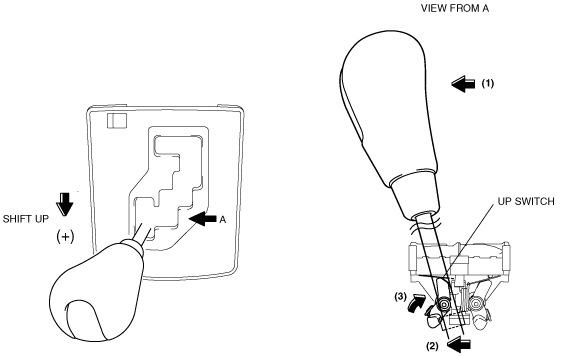

Up switch operation

•  The up switch is an on/off type switch that turns on when the selector lever is in the M range (+) side position.

am6zzn00000766

Down Switch

Down switch outline

•  The down switch detects a down-shift operation in the M range and sends a down-shift request signal to the TCM.

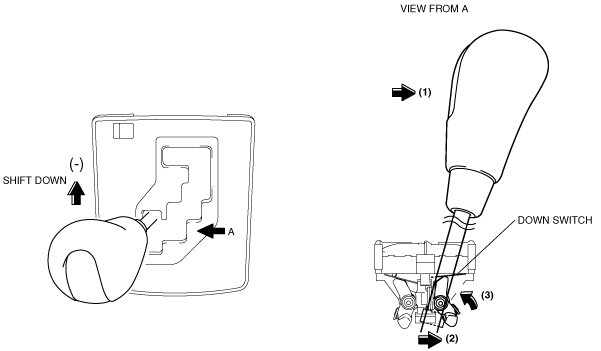

Down switch operation

•  The down switch is an on/off type switch that turns on when the selector lever is in the M range (–) side position.
