HVAC SPECIFICATIONS [MANUAL AIR CONDITIONER]

id0700001003a2

Basic System

Item				Specification
Heating capacity	(kW {kcal/h})			4.99 {4,291} (Without PTC heater) 5.20 {4,471} (With PTC heater)
Cooling capacity	(kW {kcal/h})			4.9 {4,213}
Refrigerant	Type			R‐134a
	Regular amount (approx. quantity)		(g {oz})	475—525 {16.8—18.5} (LF, L8, L5) 500—550 {17.7—19.4} (MZR-CD (RF Turbo), MZR-CD 2.2)
A/C compressor	Type			Swash plate (LF, L8, L5) Vane-rotary (MZR-CD (RF Turbo), MZR-CD 2.2)
	Discharge capacity		(ml {cc, fl oz})	175 {175, 5.915} (LF, L8, L5) 120 {120, 4.06} (MZR-CD (RF Turbo), MZR-CD 2.2)
	Max. allowable speed		(rpm)	7,000 (LF, L8, L5) 6,400 (MZR-CD (RF Turbo), MZR-CD 2.2)
	Lube oil	Type		ZXL 100PG (LF, L8, L5) ATMOS GU10 (MZR-CD (RF Turbo), MZR-CD 2.2)
		Sealed volume (approx. quantity)	(ml {cc, fl oz})	120 {120, 4.06}
Condenser	Type			Multiflow (sub-cooling type)
	Radiated heat		(kW {kcal/h})	6.4 {5,503}
	Receiver/drier capacity		(ml {cc, fl oz})	180 {180, 6.084}
	Desiccant			XH-7
Expansion valve	Type			External equalizing type
Evaporator	Type			Tube fin type

Control System

Item			Specification
Airflow volume (during heater operation)	Blower motor	(m3/h)	330
Electricity consumption (during heater operation)	Blower motor	(W)	211
Airflow volume (during air conditioner operation)	Blower motor	(m3/h)	530
Electricity consumption (during air conditioner operation)	Blower motor	(W)	257
	Magnetic clutch	(W)	35
Heating capacity	Water heater (L.H.D.) (MZR-CD (RF Turbo), MZR-CD 2.2)	(kW {kcal/h})	5 {4,299}
Heating capacity	PTC heater (MZR-CD (RF Turbo), MZR-CD 2.2)	(kW {kcal/h})	0.3 {258}
Electricity consumption	PTC heater (MZR-CD (RF Turbo), MZR-CD 2.2)	(W)	250—350
Magnetic clutch clearance (approx. quantity)		(mm {in})	0.3—0.6 {0.012—0.023} (LF, L8, L5) 0.3—0.5 {0.012—0.019} (MZR-CD (RF Turbo), MZR-CD 2.2)
Fan type	Blower motor		Sirocco fan

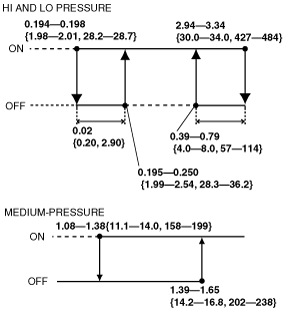

Refrigerant pressure switch	Type		Dual-pressure
	Operating pressure
	(MPa {kgf/cm2, psi})
	Type		Triple-pressure
	Operating pressure
	(MPa {kgf/cm2, psi})
Thermal protector (MZR-CD (RF Turbo), MZR-CD 2.2)	Type		Bimetalic
	Operating temperature	(°C{°F})
Sensor	Ambient temperature sensor		Thermistor
	Evaporator temperature sensor		Thermistor
Actuator	Air intake actuator		Sliding contact type
	Air mix actuator		Potentiometer type
	Airflow mode actuator		Potentiometer type
