DTC B1081:71, B1082:71

id070200816500

DTC B1081:71, B1082:71

Air mix actuator (motor lock) system

Note

•  DTC B1081:71, B1082:71 will be detected when the ignition switch is turned to the ON position and approx. 30 s have passed since the air mix actuator is operated.

POSSIBLE CAUSE

•  Air mix actuator malfunction

•  A/C unit (air mix link and air mix crank) malfunction

•  Open or short circuit in wiring harness between climate control unit and air mix actuator

DTC B1081:71, B1082:71	Air mix actuator (motor lock) system Note • DTC B1081:71, B1082:71 will be detected when the ignition switch is turned to the ON position and approx. 30 s have passed since the air mix actuator is operated.
POSSIBLE CAUSE	• Air mix actuator malfunction • A/C unit (air mix link and air mix crank) malfunction • Open or short circuit in wiring harness between climate control unit and air mix actuator

Diagnostic Procedure

STEP	INSPECTION		ACTION

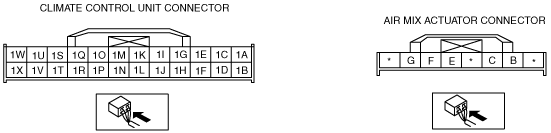

1	• Disconnect the air mix actuator connector. • Apply battery positive voltage and connect the ground to the air mix actuator connector terminals B and C, and then inspect the air mix actuator. • Does the air mix actuator operate?	Yes	Connect the connector, then go to Step 3.
1		No	Go to the next step.
2	• Remove the air mix actuator. • Operate the air mix link manually. • Does the air mix link operate smoothly?	Yes	Replace the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
2		No	Replace the air mix link and the air mix crank.
3	• Disconnect the climate control unit connector. • Apply battery positive voltage and connect the ground to the climate control unit terminal 1P and 1R, and then inspect the air mix actuator. (Driver-side) • Apply battery positive voltage and connect the ground to the climate control unit terminal 1O and 1Q, and then inspect the air mix actuator. (Passenger-side) • Does the air mix actuator operate?	Yes	Inspect the connection of the climate control unit connector.
3		No	Repair the wiring harness.
